BVOP pump

BVOP pump

The BVOP is a high quality axial propeller pump with impressive performances, a high quality and a relatively low noise level.

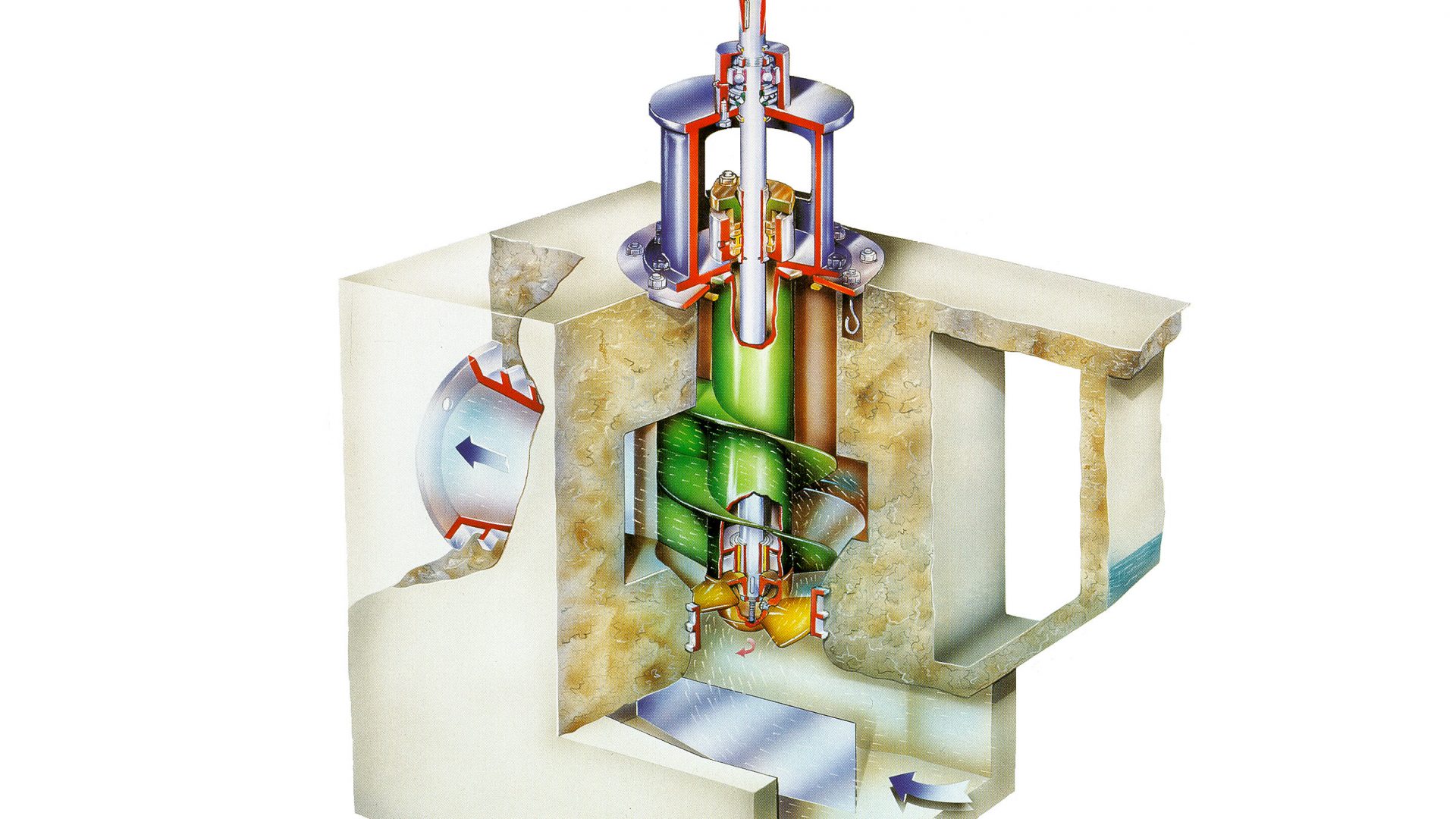

BVOP tekening zonder motor
Ideal use

Bosman Watermanagement made use of its many years' experience in the development of the BVOP pump for the discharge of water from and/or management of the water level in polders and low-lying areas, and for supply of make-up water to canals with locks and in areas at higher altitudes in dry periods.


This pump, with a range of seven standard modules, is available with capacities of 12 to 360 m³/minute with a delivery head of approximately 10 meters. The combination of a preformed suction chamber with adjustable impeller blades and a spiral guide in a very generously-sized concrete volute achieves an ideal flow pattern with minimum losses and a large passage. Consequently, this design of this pump achieves a high efficiency. In addition, the pump requires only a shallow sub-mergence depth.

Three impeller configurations for each size of pump guarantee optimum performance without harmful cavitation or vibration zones.

The most suitable type of pump for specific application is determined using CAS (Computer Aided Selection). When selecting a pump type the specified duty point (flow/delivery head) needs to be realised. The minimum and maximum static delivery heads, the location of the optimum efficiency point, the NPSH etc. are additional factors that need to be taken into account when selecting a pump.

Once a selection has been made, the CAS system will present the calculated pump curve and the desirable guarantee point.


Bosman Watermanagement supplied the BVOP pump, for example, the Pilmuir pumping station, which aims to manage the floods in the Pilmuir area. The BVOP pump was also used in the new construction of the Houtkade pumping station in the pilder near Oud-Kamerik. Wondering how this was done and what the final result was? Take a look at the projects under the heading 'projects' for more background information and images.

I want more information

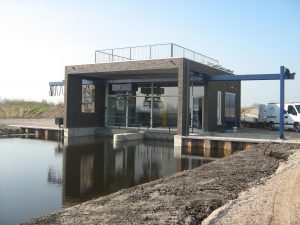

gemaal Houtkade
Gemaal Lansingerland aanzicht

Features & Benefits of the BVOP pump

View specifications

Projecten met dit product

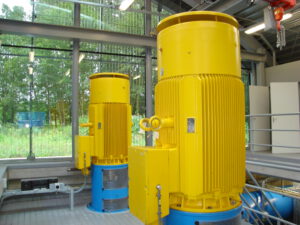

Gemaal Lansingerland pompruimte
Pumping station Lansingerland
Gemaal Poppekinderen
Pumping station Poppekinderen
Gemaal Vlotwatering BVOP 45 III
Pumping station Vlotwatering
