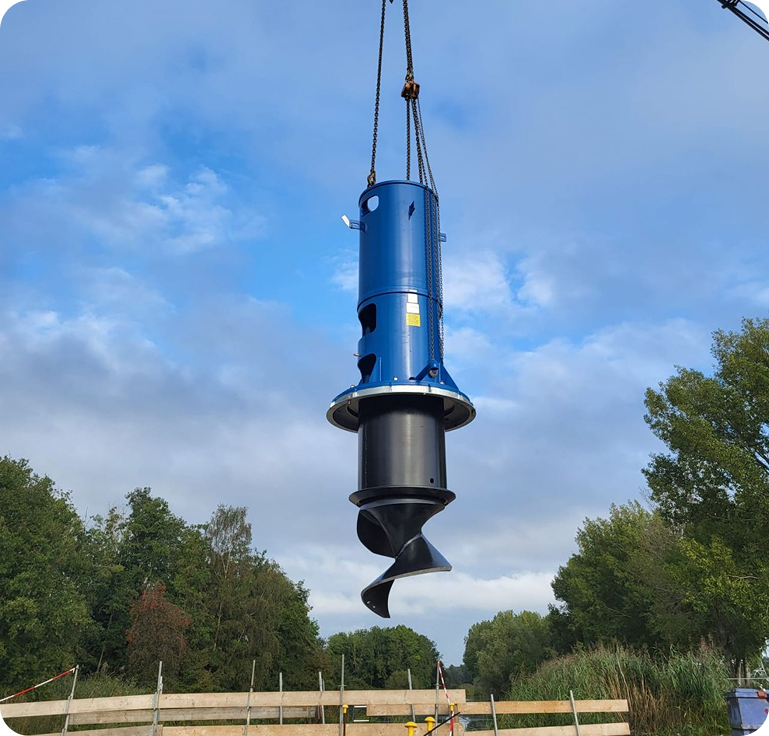

Vision CV pump

The Vision pump has been carefully designed with one clear principle in mind: to allow fish to pass through safely and unimpeded. The fish-friendly design demonstrates a strong commitment to environmental responsibility without compromising on performance.

Used product

Vision CV pump

Heading

Fish-friendly, clog-free, built for performance

In response to market demand and based on many years of experience, Bosman Watermanagement has developed the Vision CV: a fish-friendly and clog-free pump type with impressive performance. The Vision is suitable for both new construction and renovation of polder pumping stations, drainage pumping stations, and irrigation pumps, and is available as a series of standard modules within a capacity range of approximately 12 to 360 m³/minute.

Operation

The components of the Vision pump are hydraulically optimized to allow fish and eels to pass safely, while maintaining high efficiency and a wide control range. The design also prevents clogging by, for example, aquatic plants. In addition, the inlet chamber reduces the required installation depth, leading to savings in construction costs.

Features & benefits of the Vision CV pump

Fish-friendliness proven by extensive research
- Low-resistance suction chamber
- Fish-friendly mixed-flow impeller with a single blade
- No splitter blades; fish-friendly housing with rounded inlet opening
- Easily removable vertical pump
- Environmentally friendly, water-lubricated bearings and seal at the bottom
- Made from durable and corrosion-resistant materials
- Compact design
- Low noise level
- Can be installed at shallow depths

Tested according NEN 8775

More than 98% of the fish survived the field test conducted by Ecological Consultant VisAdvies without damage and/or (delayed) mortality. This proves the fish-friendliness of the Vision MC.

Special design

The specially developed mixed-flow impeller with just one fish-friendly blade allows fish to pass through the pumping station safely and without harm.
